Introduction to SVGs

To understand why SVGs are appealing for custom tools like event seatmaps, let's first review what SVGs are. SVG stands for Scalable Vector Graphics. It's an XML-based vector image format for describing two-dimensional graphics.

The key characteristics of SVGs are:

• They are vector-based, meaning they are defined by paths, shapes, text and embedded raster graphics. This is different from raster formats like JPEGs or PNGs which are defined by a grid of pixels.
• They are scalable and resolution-independent. Because SVGs are defined mathematically rather than by pixels, they can be scaled up or down without losing quality. An SVG will look crisp on any screen resolution.
• SVGs are text-based and human-readable. If you open an SVG file in a text editor, you'll see the XML markup describing the graphic. This makes them easy to create, edit, search and compress.
• They support interactivity and animation. SVGs can respond to user input like mouse clicks and can be animated declaratively.

These traits make SVGs a powerful format for many use cases, from simple icons to complex data visualizations. For our seatmap tool, SVGs provide some key benefits.

Benefits of SVGs for Seatmaps

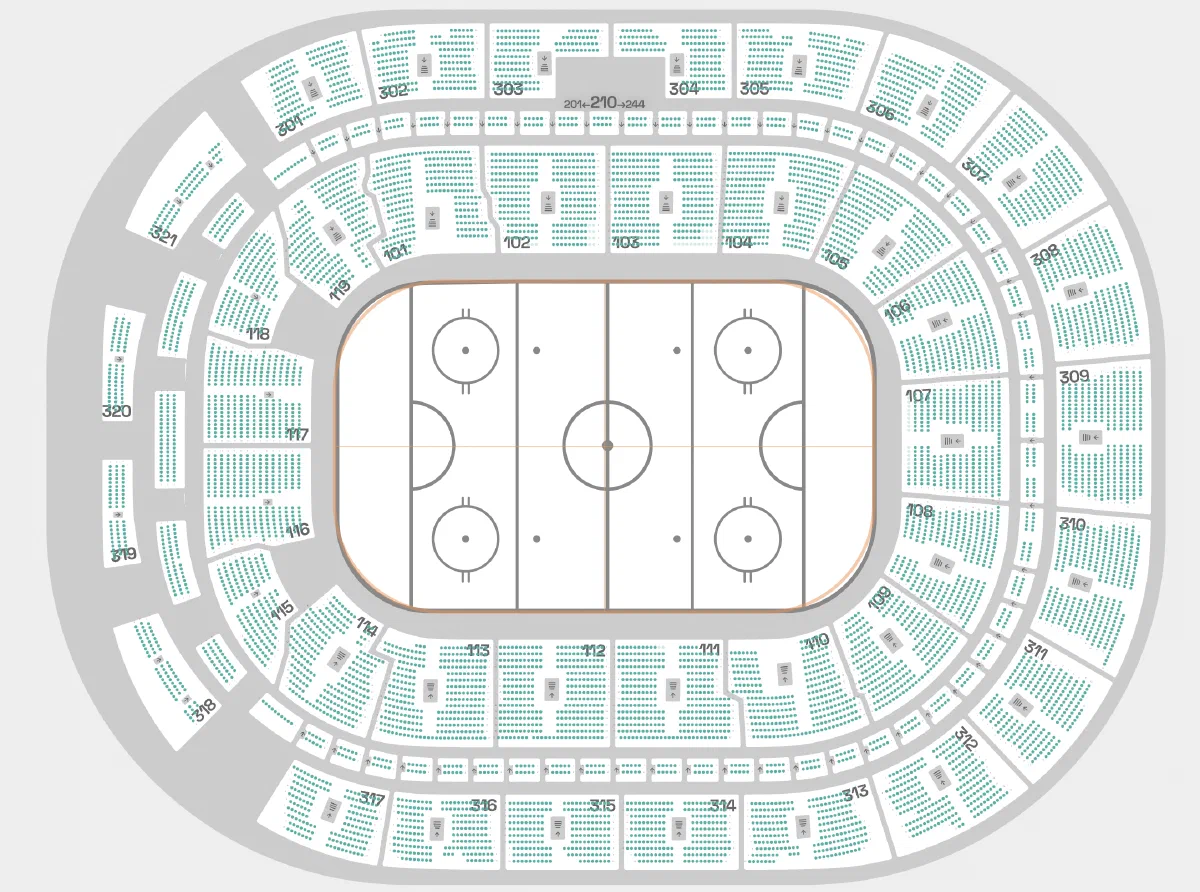

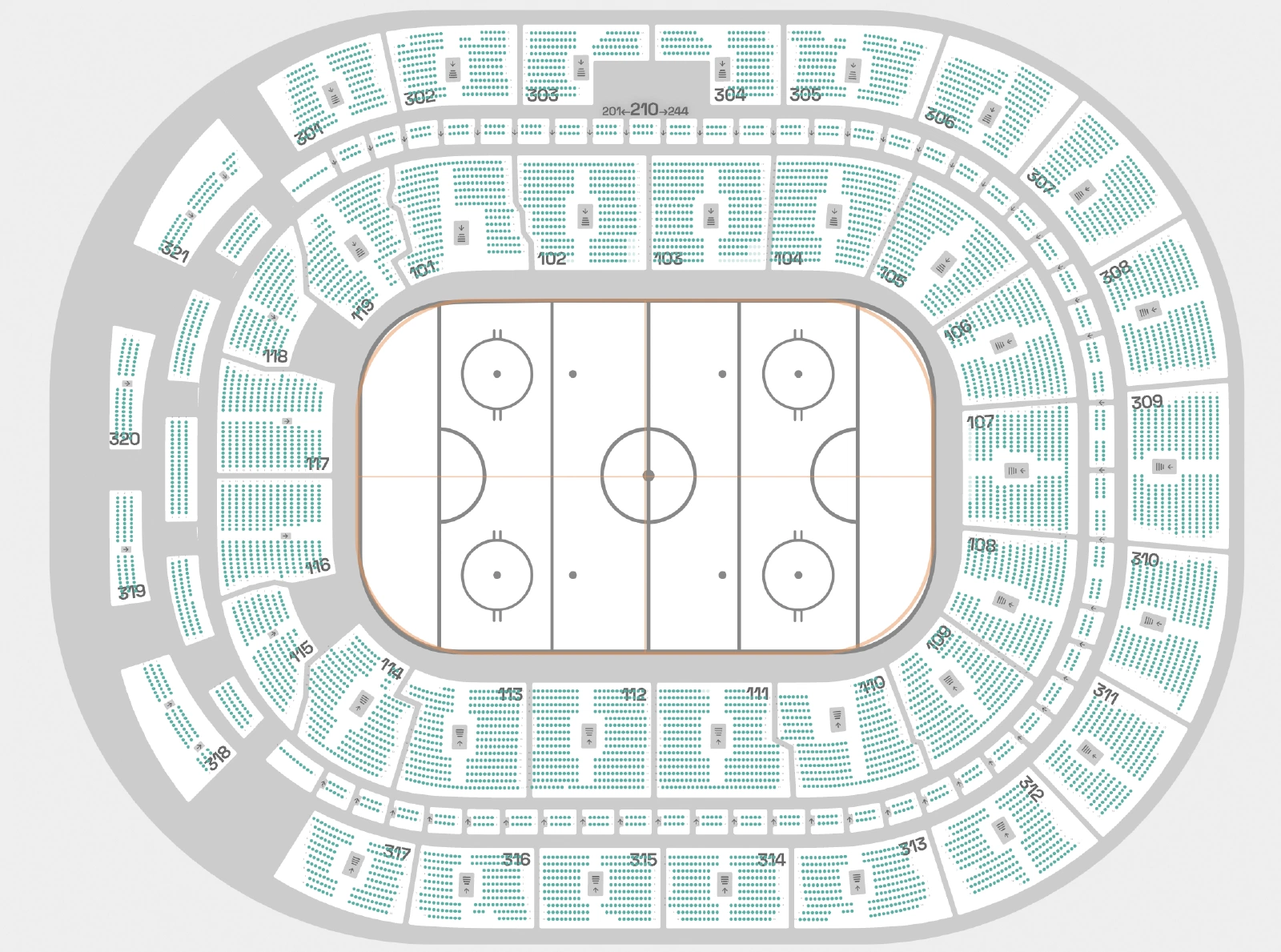

Imagine you're building a web-based seatmap tool that lets users view and select seats for a concert venue. Using SVGs for the seatmap graphic has several advantages:

1. Scaling and zooming: Users can zoom in to view seat details without pixelation, thanks to SVGs' resolution independence. This is crucial for large, complex venue maps.
2. Interactivity: You can make each seat its own SVG element and add click handlers, hover effects, tooltips, etc. This lets users interact with the map intuitively.
3. Easy to generate: Since SVGs are just XML text, you can dynamically generate them server-side from your seat data. No need to manually draw maps.
4. Styling with CSS: SVG elements can be styled with CSS, just like HTML. This makes it easy to color-code seat sections, apply themes, etc.
5. Small file size: For simple graphics, SVGs are compact and quick to transmit over the web, meaning faster load times.

So in theory, SVGs seem ideal for this use case. However, our seatmap tool needs to handle very large and complex venue schemas, and this is where we start to hit scalability issues with SVGs.

Challenges with Complex SVGs

The main problem is that as the SVG seatmap gets more complex, with thousands of seat elements and lots of metadata, the SVG file gets massive. We're talking about megabytes of XML text defining the map.

Browsers have to parse all that text and build an internal representation of the graphic in memory. This takes time and processing power. Then the browser has to rasterize the SVG - convert it into pixels to display on screen. For very complex SVGs, this rasterization step becomes a bottleneck.

Users on lower-powered devices may see their browsers freeze up as it struggles to display the massive SVG. And every pan or zoom action requires re-rasterizing the visible portion of the graphic, leading to a sluggish, unresponsive UI.

There are some ways to optimize SVGs, like breaking them up into smaller sub-graphics. But for our use case, with seatmaps that may contain tens of thousands of seats, we found that SVGs simply weren't performant enough in the browser.

Switching to Server-Side PNGs

To keep our seatmaps performant even for the most complex venues, we decided to move the SVG rasterization step from the client to the server. Here's how it works:

1. On the server, we generate the SVG seatmap from our venue data.
2. We then use a headless browser like Puppeteer to open the SVG and rasterize it into a PNG image at various zoom levels. This is called pre-rendering.
3. We serve the pre-rendered PNGs to the client, along with JSON metadata describing each seat rect.
4. The client displays the PNG seatmap as a background image and overlays interactive seat elements positioned according to the JSON metadata.

With this approach, the browser no longer has to parse and rasterize a massive SVG. Instead, it just displays a simple PNG background which takes no time at all. Pan and zoom actions just update the position of the background image.

The tradeoff is that we have to store many PNGs for each venue, at different zoom levels. But PNGs compress well, and storage is cheap. The benefit in performance and user experience is well worth it.

The Case of the Bloated Logo

One of our customers was creating a seatmap for a medium-sized venue of about 6,000 seats. The seatmap SVG was relatively complex, with each seat being its own element, but it was still loading and rendering reasonably quickly.

However, the customer decided to add a company logo to the seatmap. They found a high-resolution TIFF of their logo and embedded it into the SVG using the <image> element. They figured a single logo wouldn't make much difference in the grand scheme of things.

But when they loaded the updated SVG, they were surprised to find that it took significantly longer to render. The file size had jumped from a manageable few hundred KB to several MB, just by adding this one logo.

Confused, they reached out to our support team, wondering why adding a simple logo would cause such a drastic change in performance.

We took a look at their SVG and quickly identified the issue. While the logo looked like a simple image on the screen, the PNG file they used was actually very large in dimensions and resolution. This high-resolution image data was being embedded directly into the SVG, bloating its file size.

We suggested a few solutions:

1. Use a compressed, lower-resolution version of the logo. For the size it was displayed at, they didn't need nearly the resolution they were using.
2. Consider loading the logo as a separate image file, not embedded in the SVG. This would keep the SVG file size down and allow the logo to be cached separately by the browser.
3. If they really wanted to embed the logo, consider using an SVG version of the logo instead of a PNG. SVGs are often much more compact than equivalent PNGs, especially for simple graphics like logos.

The customer opted for a combination of the first and third options. They recreated their logo as an SVG and embedded that, which kept the file size much lower. They also used a version of the logo optimized for the display size, rather than an unnecessarily high-resolution version.

With these changes, their seatmap SVG loaded quickly again, even with the logo included.

This case illustrates how even seemingly small additions to an SVG can have significant performance impacts if not done carefully. It's important to always consider the size and efficiency of any embedded images or elements in an SVG, not just the complexity of the SVG structure itself.

Conclusion

In the world of SVGs, the devil is truly in the details. A single inefficient element, whether it's an unnecessarily high-resolution embedded image or an overly complex path, can bring even the most carefully crafted SVG to its knees.

The key, as always, is to test and profile your SVGs as you build them. Don't just look at the overall complexity, but also examine each individual element. Are your embedded images optimized for the size they'll be displayed at? Are you using efficient SVG elements and paths? Every little optimization can make a difference, especially as your SVGs scale up in size and complexity.

And if you do find your SVGs are becoming too unwieldy, don't be afraid to consider alternative solutions. As we found with our seatmap tool, sometimes a hybrid approach, using SVGs for some parts and raster images for others, can provide the best balance of performance and flexibility.

The goal, in the end, is to create graphics that are both visually compelling and performant. By understanding the strengths and limitations of SVGs, and by being mindful of efficiency as you build, you can create complex, interactive graphics that delight your users without bogging down their browsers.

I hope these real-world examples help illustrate some of the key considerations and potential pitfalls when working with SVGs at scale. Let me know if you have any other questions or insights to share!
